#include </home/jenkins/workspace/orxonox_doxygen_trunk/src/orxonox/interfaces/NotificationListener.h>

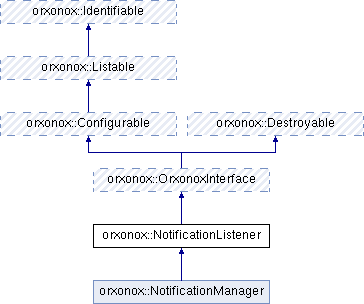

Inheritance diagram for orxonox::NotificationListener:

Public Member Functions
	NotificationListener ()

virtual	~NotificationListener ()

virtual bool	executeCommand (NotificationCommand command, const std::string &sender)
	Executes a command with the NotificationListener This needs to be overloaded by each class inheriting from NotificationListener. More...

virtual bool	registerNotification (const std::string &message, const std::string &sender, NotificationMessageType type)
	Registers a notification with the NotificationListener. More...

Public Member Functions inherited from orxonox::OrxonoxInterface
	OrxonoxInterface ()

Public Member Functions inherited from orxonox::Configurable
	Configurable ()

void	setConfigValues ()
	Function to collect the SetConfigValue-macro calls. More...

Public Member Functions inherited from orxonox::Listable
	Listable ()
	Constructor: Allocates space in the element list. More...

	Listable (Context *context)
	Constructor: Allocates space in the element list and assigns the context. More...

virtual	~Listable ()
	Destructor: Removes the object from the object-lists. More...

Context *	getContext () const

void	setContext (Context *context)
	Changes the context. More...

void	unregisterObject ()
	Removes this object from the object-lists. More...

Public Member Functions inherited from orxonox::Identifiable
	Identifiable ()
	Constructor: Sets the default values. More...

virtual	~Identifiable ()

ORX_FORCEINLINE void *	getDerivedPointer (unsigned int classID)
	Returns a valid pointer of any derived type that is registered in the class hierarchy. More...

template<class T >
ORX_FORCEINLINE T *	getDerivedPointer (unsigned int classID)
	Version of getDerivedPointer with template. More...

template<class T >
ORX_FORCEINLINE const T *	getDerivedPointer (unsigned int classID) const
	Const version of getDerivedPointer with template. More...

Identifier *	getIdentifier () const
	Returns the Identifier of the object. More...

bool	isA (const Identifier *identifier)
	Returns true if the object's class is of the given type or a derivative. More...

template<class B >
bool	isA (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is of the given type or a derivative. More...

bool	isA (const Identifiable *object)
	Returns true if the object's class is of the given type or a derivative. More...

bool	isChildOf (const Identifier *identifier)
	Returns true if the object's class is a child of the given type. More...

template<class B >
bool	isChildOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a child of the given type. More...

bool	isChildOf (const Identifiable *object)
	Returns true if the object's class is a child of the given type. More...

bool	isDirectChildOf (const Identifier *identifier)
	Returns true if the object's class is a direct child of the given type. More...

template<class B >
bool	isDirectChildOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a direct child of the given type. More...

bool	isDirectChildOf (const Identifiable *object)
	Returns true if the object's class is a direct child of the given type. More...

bool	isDirectParentOf (const Identifier *identifier)
	Returns true if the object's class is a direct parent of the given type. More...

template<class B >
bool	isDirectParentOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a direct parent of the given type. More...

bool	isDirectParentOf (const Identifiable *object)
	Returns true if the object's class is a direct child of the given type. More...

bool	isExactlyA (const Identifier *identifier)
	Returns true if the object's class is exactly of the given type. More...

template<class B >
bool	isExactlyA (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is exactly of the given type. More...

bool	isExactlyA (const Identifiable *object)
	Returns true if the object's class is exactly of the given type. More...

bool	isParentOf (const Identifier *identifier)
	Returns true if the object's class is a parent of the given type. More...

template<class B >
bool	isParentOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a parent of the given type. More...

bool	isParentOf (const Identifiable *object)
	Returns true if the object's class is a parent of the given type. More...

Public Member Functions inherited from orxonox::Destroyable
	Destroyable ()
	Constructor: Sets the default values. More...

virtual	~Destroyable ()
	Destructor: Notifies all DestructionListener (for example weak pointers) that this object is being deleted. More...

void	destroy ()
	Deletes the object if no strong pointers point to this object. More...

void	destroyLater ()
	Works like destroy() but doesn't destroy the object until the current tick has ended. More...

unsigned int	getReferenceCount () const
	Returns the number of strong pointers that point to this object. More...

Static Public Member Functions
static void	sendCommand (const std::string &command, const std::string &sender=NotificationListener::NONE, NotificationSendMode sendMode=NotificationSendMode::local, unsigned int clientId=0)
	Sends a specified command to the specified client from the specified sender. More...

static void	sendHelper (const std::string &message, const std::string &sender, bool isCommand, NotificationMessageType type)
	Helper method to register a notification/execute a command with all NotificationListeners after it has been sent over the network. More...

static void	sendNotification (const std::string &message, const std::string &sender=NotificationListener::NONE, NotificationMessageType messageType=NotificationMessageType::info, NotificationSendMode sendMode=NotificationSendMode::local, unsigned int clientId=0)
	Sends a Notification with the specified message to the specified client from the specified sender. More...

Static Public Attributes
static const std::string	ALL
	Static string to indicate a sender that sends to all NotificationQueues. More...

static const std::string	COMMAND_CLEAR
	Commands. More...

static const std::string	COMMAND_NONE

static const std::string	NONE
	Static string to indicate a sender that sends to no specific NotificationQueues. More...

Static Protected Member Functions
static const std::string &	command2Str (NotificationCommand command)
	Helper method. More...

static void	sendNetworkHelper (const std::string &message, const std::string &sender, NotificationSendMode sendMode, unsigned int clientId, bool isCommand=false, NotificationMessageType messageType=NotificationMessageType::info)
	Helper method to send both notifications and commands over the network. More...

static NotificationCommand	str2Command (const std::string &string)
	Helper method. More...

Additional Inherited Members
Protected Member Functions inherited from orxonox::Destroyable
virtual void	preDestroy ()
	This virtual function is called if destroy() is called and no StrongPtr points to this object. More...

Detailed Description

NotificationListener interface.

The NotificationListener interface (or more precisely abstract class) presents a means of being informed when a new Notification is sent. The NotificationListener can be used to send a new notification message (with NotificationListener::sendNotification() ) or a new notification command (with NotificationListener::sendCommand() ). Each NotificationListener is then informed about the new Notification and can take appropriate action. Currently the only NotificationListener ist the NotificationManager singleton.

When inheriting from a NotificationListener it is important to provide an appropriate implementation of registerNotification() and executeCommand().

Author: Damian 'Mozork' Frick

Todo:: Consistent terminology between message, notification and command.

Constructor & Destructor Documentation

orxonox::NotificationListener::NotificationListener ( )

virtual orxonox::NotificationListener::~NotificationListener ( )

inlinevirtual

Member Function Documentation

const std::string & orxonox::NotificationListener::command2Str ( NotificationCommand command )

staticprotected

Helper method.

Converts a command enum into its corresponding string.

Parameters

command The command to be converted.

Returns: Returns the corresponding string.

virtual bool orxonox::NotificationListener::executeCommand	(	NotificationCommand	command,
		const std::string &	sender
	)

inlinevirtual

Executes a command with the NotificationListener This needs to be overloaded by each class inheriting from NotificationListener.

Parameters

command	The command to be executed.
sender	The sender of the command.

Returns: Returns true if the command was successfully executed, false if not.

Reimplemented in orxonox::NotificationManager.

virtual bool orxonox::NotificationListener::registerNotification	(	const std::string &	message,
		const std::string &	sender,
		NotificationMessageType	type
	)

inlinevirtual

Registers a notification with the NotificationListener.

This needs to be overloaded by each class inheriting from NotificationListener.

Parameters

message	The notification's message.
sender	The sender of the notification.
type	The type of the notification.

Returns: Returns true if the notification was successfully registered, false if not.

Reimplemented in orxonox::NotificationManager.

static void orxonox::NotificationListener::sendCommand	(	const std::string &	command,
		const std::string &	sender = `NotificationListener::NONE`,
		NotificationSendMode	sendMode = `NotificationSendMode::local`,
		unsigned int	clientId = `0`
	)

inlinestatic

Sends a specified command to the specified client from the specified sender.

Parameters

command	The command that should be sent (and later executed).
sender	The sender that sent the notification. Default is 'none'.
sendMode	The mode in which the command is sent, can be 'local' to send the command to the client where this function is executed, 'network' if the command is to be sent to the client with the specified clientID, or 'broadcast' if the command should be sent to all hosts. Default is NotificationSendMode::local.
clientId	The id of the client the command should be sent to. Default is 0.

void orxonox::NotificationListener::sendHelper	(	const std::string &	message,
		const std::string &	sender,
		bool	isCommand,
		NotificationMessageType	type
	)

static

Helper method to register a notification/execute a command with all NotificationListeners after it has been sent over the network.

Parameters

message	The notification/command to be sent/executed.
sender	The sender that sent the notification/command.
isCommand	Whether the message is a command or a notification.
type	The type of the notification.

void orxonox::NotificationListener::sendNetworkHelper	(	const std::string &	message,
		const std::string &	sender,
		NotificationSendMode	sendMode,
		unsigned int	clientId,
		bool	isCommand = `false`,
		NotificationMessageType	messageType = `NotificationMessageType::info`
	)

staticprotected

Helper method to send both notifications and commands over the network.

Parameters

message	The message/command that should be sent.
sender	The sender that sent the notification/command.
sendMode	The mode in which the notification/command is sent, can be 'local' to send the notification to the client where this function is executed, 'network' if the notification is to be sent to the client with the specified clientID, or 'broadcast' if the notification should be sent to all hosts.
clientId	The id of the client the notification/command should be sent to.
isCommand	Whether the message is a notification or a command.
messageType	The type of the notification, can be either 'info' or 'important'.

static void orxonox::NotificationListener::sendNotification	(	const std::string &	message,
		const std::string &	sender = `NotificationListener::NONE`,
		NotificationMessageType	messageType = `NotificationMessageType::info`,
		NotificationSendMode	sendMode = `NotificationSendMode::local`,
		unsigned int	clientId = `0`
	)

inlinestatic

Sends a Notification with the specified message to the specified client from the specified sender.

Parameters

message	The message that should be sent.
sender	The sender that sent the notification. Default is 'none'.
messageType	The type of the message, can be either 'info' or 'important'. Default is 'info'.
sendMode	The mode in which the notification is sent, can be 'local' to send the notification to the client where this function is executed, 'network' if the notification is to be sent to the client with the specified clientID, or 'broadcast' if the notification should be sent to all hosts. Default is NotificationSendMode::local.
clientId	The id of the client the notification should be sent to. Default is 0.

NotificationCommand orxonox::NotificationListener::str2Command ( const std::string & string )

staticprotected

Helper method.

Converts a string into the enum for a command.

Parameters

string The string to be converted.

Returns: Returns the corresponding enum, NotificationCommand::none if the command doesn't exist.

Member Data Documentation

const std::string orxonox::NotificationListener::ALL

static

Static string to indicate a sender that sends to all NotificationQueues.

const std::string orxonox::NotificationListener::COMMAND_CLEAR

static

Commands.

const std::string orxonox::NotificationListener::COMMAND_NONE

static

const std::string orxonox::NotificationListener::NONE

static

Static string to indicate a sender that sends to no specific NotificationQueues.

The documentation for this class was generated from the following files:

orxonox/interfaces/NotificationListener.h
orxonox/interfaces/NotificationListener.cc

Public Member Functions

Static Public Member Functions

Static Public Attributes

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
