TiXmlNode Class Referenceabstract

The parent class for everything in the Document Object Model. More...

#include </home/jenkins/workspace/orxonox_doxygen_trunk/src/external/tinyxml/tinyxml.h>

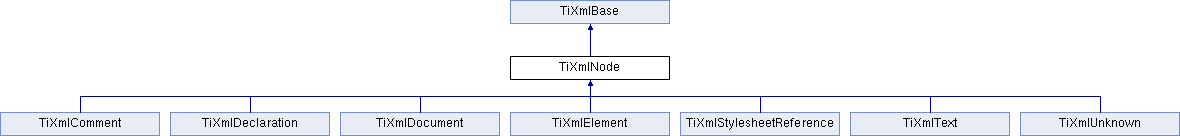

Inheritance diagram for TiXmlNode:
TiXmlBase TiXmlComment TiXmlDeclaration TiXmlDocument TiXmlElement TiXmlStylesheetReference TiXmlText TiXmlUnknown

Public Types

enum  NodeType {
  DOCUMENT, ELEMENT, COMMENT, UNKNOWN,
  TEXT, DECLARATION, STYLESHEETREFERENCE, TYPECOUNT
}
 The types of XML nodes supported by TinyXml. More...

- Public Types inherited from TiXmlBase
enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_DOCUMENT_TOP_ONLY, TIXML_ERROR_STRING_COUNT
}


Public Member Functions

virtual ~TiXmlNode ()

virtual bool Accept (TiXmlVisitor *visitor) const =0
 Accept a hierchical visit the nodes in the TinyXML DOM. More...

void Clear ()
 Delete all the children of this node. Does not affect 'this'. More...

virtual TiXmlNodeClone () const =0
 Create an exact duplicate of this node and return it. More...

const TiXmlNodeFirstChild () const
 The first child of this node. Will be null if there are no children. More...

TiXmlNodeFirstChild ()

const TiXmlNodeFirstChild (const char *value) const
 The first child of this node with the matching 'value'. More...

TiXmlNodeFirstChild (const char *_value)
 The first child of this node with the matching 'value'. Will be null if none found. More...

const TiXmlElementFirstChildElement () const
 Convenience function to get through elements. More...

TiXmlElementFirstChildElement ()

const TiXmlElementFirstChildElement (const char *_value) const
 Convenience function to get through elements. More...

TiXmlElementFirstChildElement (const char *_value)

const TiXmlDocumentGetDocument () const
 Return a pointer to the Document this node lives in. More...

TiXmlDocumentGetDocument ()

TiXmlNodeInsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
 Add a new node related to this. More...

TiXmlNodeInsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
 Add a new node related to this. More...

TiXmlNodeInsertEndChild (const TiXmlNode &addThis)
 Add a new node related to this. More...

const TiXmlNodeIterateChildren (const TiXmlNode *previous) const
 An alternate way to walk the children of a node. More...

TiXmlNodeIterateChildren (const TiXmlNode *previous)

const TiXmlNodeIterateChildren (const char *value, const TiXmlNode *previous) const
 This flavor of IterateChildren searches for children with a particular 'value'. More...

TiXmlNodeIterateChildren (const char *_value, const TiXmlNode *previous)

const TiXmlNodeLastChild () const

TiXmlNodeLastChild ()
 The last child of this node. Will be null if there are no children. More...

const TiXmlNodeLastChild (const char *value) const

TiXmlNodeLastChild (const char *_value)
 The last child of this node matching 'value'. Will be null if there are no children. More...

TiXmlNodeLinkEndChild (TiXmlNode *addThis)
 Add a new node related to this. More...

const TiXmlNodeNextSibling () const
 Navigate to a sibling node. More...

TiXmlNodeNextSibling ()

const TiXmlNodeNextSibling (const char *) const
 Navigate to a sibling node with the given 'value'. More...

TiXmlNodeNextSibling (const char *_next)

const TiXmlElementNextSiblingElement () const
 Convenience function to get through elements. More...

TiXmlElementNextSiblingElement ()

const TiXmlElementNextSiblingElement (const char *) const
 Convenience function to get through elements. More...

TiXmlElementNextSiblingElement (const char *_next)

bool NoChildren () const
 Returns true if this node has no children. More...

TiXmlNodeParent ()
 One step up the DOM. More...

const TiXmlNodeParent () const

const TiXmlNodePreviousSibling () const
 Navigate to a sibling node. More...

TiXmlNodePreviousSibling ()

const TiXmlNodePreviousSibling (const char *) const
 Navigate to a sibling node. More...

TiXmlNodePreviousSibling (const char *_prev)

bool RemoveChild (TiXmlNode *removeThis)
 Delete a child of this node. More...

TiXmlNodeReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
 Replace a child of this node. More...

void SetValue (const char *_value)
 Changes the value of the node. More...

virtual const TiXmlCommentToComment () const
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlCommentToComment ()
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlDeclarationToDeclaration () const
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlDeclarationToDeclaration ()
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlDocumentToDocument () const
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlDocumentToDocument ()
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlElementToElement () const
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlElementToElement ()
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlStylesheetReferenceToStylesheetReference () const
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlStylesheetReferenceToStylesheetReference ()
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlTextToText () const
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlTextToText ()
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual const TiXmlUnknownToUnknown () const
 Cast to a more defined type. Will return null if not of the requested type. More...

virtual TiXmlUnknownToUnknown ()
 Cast to a more defined type. Will return null if not of the requested type. More...

int Type () const
 Query the type (as an enumerated value, above) of this node. More...

const char * Value () const
 The meaning of 'value' changes for the specific type of TiXmlNode. More...

const TIXML_STRINGValueTStr () const

- Public Member Functions inherited from TiXmlBase
 TiXmlBase ()

virtual ~TiXmlBase ()

int Column () const
 See Row() More...

voidGetUserData ()
 Get a pointer to arbitrary user data. More...

const voidGetUserData () const
 Get a pointer to arbitrary user data. More...

virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0

virtual void Print (FILE *cfile, int depth) const =0
 All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null. More...

int Row () const
 Return the position, in the original source file, of this node or attribute. More...

void SetUserData (void *user)
 Set a pointer to arbitrary user data. More...


Protected Member Functions

 TiXmlNode (NodeType _type)

void CopyTo (TiXmlNode *target) const

TiXmlNodeIdentify (const char *start, TiXmlEncoding encoding)


Protected Attributes

TiXmlNodefirstChild

TiXmlNodelastChild

TiXmlNodenext

TiXmlNodeparent

TiXmlNodeprev

NodeType type

TIXML_STRING value

- Protected Attributes inherited from TiXmlBase
TiXmlCursor location

voiduserData
 Field containing a generic user pointer. More...


Private Member Functions

 TiXmlNode (const TiXmlNode &)

void operator= (const TiXmlNode &base)


Friends

class TiXmlDocument

class TiXmlElement


Additional Inherited Members

- Static Public Member Functions inherited from TiXmlBase
static void EncodeString (const TIXML_STRING &str, TIXML_STRING *out)
 Expands entities in a string. More...

static bool IsWhiteSpaceCondensed ()
 Return the current white space setting. More...

static void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not. More...

- Static Public Attributes inherited from TiXmlBase
static const int utf8ByteTable [256]

- Static Protected Member Functions inherited from TiXmlBase
static void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

static const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)

static const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)

static int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)

static int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)

static bool IsWhiteSpace (char c)

static bool IsWhiteSpace (int c)

static const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)

static const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)

static bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)

static int ToLower (int v, TiXmlEncoding encoding)

- Static Protected Attributes inherited from TiXmlBase
static const char * errorString [TIXML_ERROR_STRING_COUNT]


Detailed Description

The parent class for everything in the Document Object Model.

(Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a TiXmlNode can be queried, and it can be cast to its more defined type.

Member Enumeration Documentation

The types of XML nodes supported by TinyXml.

(All the unsupported types are picked up by UNKNOWN.)

Enumerator
DOCUMENT
ELEMENT
COMMENT
UNKNOWN
TEXT
DECLARATION
STYLESHEETREFERENCE
TYPECOUNT

Constructor & Destructor Documentation

TiXmlNode::~TiXmlNode ( )
virtual
TiXmlNode::TiXmlNode ( NodeType  _type)
protected
TiXmlNode::TiXmlNode ( const TiXmlNode )
private

Member Function Documentation

virtual bool TiXmlNode::Accept ( TiXmlVisitor visitor) const
pure virtual

Accept a hierchical visit the nodes in the TinyXML DOM.

Every node in the XML tree will be conditionally visited and the host will be called back via the TiXmlVisitor interface.

This is essentially a SAX interface for TinyXML. (Note however it doesn't re-parse the XML for the callbacks, so the performance of TinyXML is unchanged by using this interface versus any other.)

The interface has been based on ideas from:

Which are both good references for "visiting".

An example of using Accept():

TiXmlPrinter printer;
tinyxmlDoc.Accept( &printer );
const char* xmlcstr = printer.CStr();

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlStylesheetReference, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

void TiXmlNode::Clear ( )

Delete all the children of this node. Does not affect 'this'.

virtual TiXmlNode* TiXmlNode::Clone ( ) const
pure virtual

Create an exact duplicate of this node and return it.

The memory must be deleted by the caller.

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlStylesheetReference, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

void TiXmlNode::CopyTo ( TiXmlNode target) const
protected
const TiXmlNode* TiXmlNode::FirstChild ( ) const
inline

The first child of this node. Will be null if there are no children.

TiXmlNode* TiXmlNode::FirstChild ( )
inline
const TiXmlNode * TiXmlNode::FirstChild ( const char *  value) const

The first child of this node with the matching 'value'.

Will be null if none found.

TiXmlNode* TiXmlNode::FirstChild ( const char *  _value)
inline

The first child of this node with the matching 'value'. Will be null if none found.

const TiXmlElement * TiXmlNode::FirstChildElement ( ) const

Convenience function to get through elements.

TiXmlElement* TiXmlNode::FirstChildElement ( )
inline
const TiXmlElement * TiXmlNode::FirstChildElement ( const char *  _value) const

Convenience function to get through elements.

TiXmlElement* TiXmlNode::FirstChildElement ( const char *  _value)
inline
const TiXmlDocument * TiXmlNode::GetDocument ( ) const

Return a pointer to the Document this node lives in.

Returns null if not in a document.

TiXmlDocument* TiXmlNode::GetDocument ( )
inline
TiXmlNode * TiXmlNode::Identify ( const char *  start,
TiXmlEncoding  encoding
)
protected
TiXmlNode * TiXmlNode::InsertAfterChild ( TiXmlNode afterThis,
const TiXmlNode addThis
)

Add a new node related to this.

Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

TiXmlNode * TiXmlNode::InsertBeforeChild ( TiXmlNode beforeThis,
const TiXmlNode addThis
)

Add a new node related to this.

Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

TiXmlNode * TiXmlNode::InsertEndChild ( const TiXmlNode addThis)

Add a new node related to this.

Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

const TiXmlNode * TiXmlNode::IterateChildren ( const TiXmlNode previous) const

An alternate way to walk the children of a node.

One way to iterate over nodes is:

    for( child = parent->FirstChild(); child; child = child->NextSibling() )

IterateChildren does the same thing with the syntax:

    child = 0;
    while( child = parent->IterateChildren( child ) )

IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

TiXmlNode* TiXmlNode::IterateChildren ( const TiXmlNode previous)
inline
const TiXmlNode * TiXmlNode::IterateChildren ( const char *  value,
const TiXmlNode previous
) const

This flavor of IterateChildren searches for children with a particular 'value'.

TiXmlNode* TiXmlNode::IterateChildren ( const char *  _value,
const TiXmlNode previous
)
inline
const TiXmlNode* TiXmlNode::LastChild ( ) const
inline
TiXmlNode* TiXmlNode::LastChild ( )
inline

The last child of this node. Will be null if there are no children.

const TiXmlNode * TiXmlNode::LastChild ( const char *  value) const
TiXmlNode* TiXmlNode::LastChild ( const char *  _value)
inline

The last child of this node matching 'value'. Will be null if there are no children.

TiXmlNode * TiXmlNode::LinkEndChild ( TiXmlNode addThis)

Add a new node related to this.

Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also
InsertEndChild
const TiXmlNode* TiXmlNode::NextSibling ( ) const
inline

Navigate to a sibling node.

TiXmlNode* TiXmlNode::NextSibling ( )
inline
const TiXmlNode * TiXmlNode::NextSibling ( const char *  _value) const

Navigate to a sibling node with the given 'value'.

TiXmlNode* TiXmlNode::NextSibling ( const char *  _next)
inline
const TiXmlElement * TiXmlNode::NextSiblingElement ( ) const

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

TiXmlElement* TiXmlNode::NextSiblingElement ( )
inline
const TiXmlElement * TiXmlNode::NextSiblingElement ( const char *  _value) const

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

TiXmlElement* TiXmlNode::NextSiblingElement ( const char *  _next)
inline
bool TiXmlNode::NoChildren ( ) const
inline

Returns true if this node has no children.

void TiXmlNode::operator= ( const TiXmlNode base)
private
TiXmlNode* TiXmlNode::Parent ( )
inline

One step up the DOM.

const TiXmlNode* TiXmlNode::Parent ( ) const
inline
const TiXmlNode* TiXmlNode::PreviousSibling ( ) const
inline

Navigate to a sibling node.

TiXmlNode* TiXmlNode::PreviousSibling ( )
inline
const TiXmlNode * TiXmlNode::PreviousSibling ( const char *  _value) const

Navigate to a sibling node.

TiXmlNode* TiXmlNode::PreviousSibling ( const char *  _prev)
inline
bool TiXmlNode::RemoveChild ( TiXmlNode removeThis)

Delete a child of this node.

TiXmlNode * TiXmlNode::ReplaceChild ( TiXmlNode replaceThis,
const TiXmlNode withThis
)

Replace a child of this node.

Returns a pointer to the new object or NULL if an error occured.

void TiXmlNode::SetValue ( const char *  _value)
inline

Changes the value of the node.

Defined as:

Document:   filename of the xml file
Element:    name of the element
Comment:    the comment text
Unknown:    the tag contents
Text:       the text string
virtual const TiXmlComment* TiXmlNode::ToComment ( ) const
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

virtual TiXmlComment* TiXmlNode::ToComment ( )
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

virtual const TiXmlDeclaration* TiXmlNode::ToDeclaration ( ) const
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

virtual TiXmlDeclaration* TiXmlNode::ToDeclaration ( )
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

virtual const TiXmlDocument* TiXmlNode::ToDocument ( ) const
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

virtual TiXmlDocument* TiXmlNode::ToDocument ( )
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

virtual const TiXmlElement* TiXmlNode::ToElement ( ) const
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

virtual TiXmlElement* TiXmlNode::ToElement ( )
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

virtual const TiXmlStylesheetReference* TiXmlNode::ToStylesheetReference ( ) const
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlStylesheetReference.

virtual TiXmlStylesheetReference* TiXmlNode::ToStylesheetReference ( )
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlStylesheetReference.

virtual const TiXmlText* TiXmlNode::ToText ( ) const
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

virtual TiXmlText* TiXmlNode::ToText ( )
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

virtual const TiXmlUnknown* TiXmlNode::ToUnknown ( ) const
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

virtual TiXmlUnknown* TiXmlNode::ToUnknown ( )
inlinevirtual

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

int TiXmlNode::Type ( ) const
inline

Query the type (as an enumerated value, above) of this node.

The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

const char* TiXmlNode::Value ( ) const
inline

The meaning of 'value' changes for the specific type of TiXmlNode.

Document:   filename of the xml file
Element:    name of the element
Comment:    the comment text
Unknown:    the tag contents
Text:       the text string

The subclasses will wrap this function.

const TIXML_STRING& TiXmlNode::ValueTStr ( ) const
inline

Friends And Related Function Documentation

friend class TiXmlDocument
friend
friend class TiXmlElement
friend

Member Data Documentation

TiXmlNode* TiXmlNode::firstChild
protected
TiXmlNode* TiXmlNode::lastChild
protected
TiXmlNode* TiXmlNode::next
protected
TiXmlNode* TiXmlNode::parent
protected
TiXmlNode* TiXmlNode::prev
protected
NodeType TiXmlNode::type
protected
TIXML_STRING TiXmlNode::value
protected

The documentation for this class was generated from the following files:
