The Shell is the logical component of the console that displays output to the user and allows him to enter commands. More...

#include </home/jenkins/workspace/orxonox_doxygen_trunk/src/libraries/core/command/Shell.h>

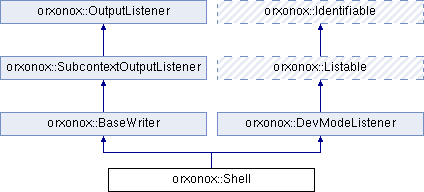

Inheritance diagram for orxonox::Shell:

Public Types
typedef std::list< std::pair< std::string, LineType > >	LineList

enum	LineType { LineType::DebugOutput = debug_output, LineType::Message = message, LineType::UserError = user_error, LineType::UserWarning = user_warning, LineType::UserStatus = user_status, LineType::UserInfo = user_info, LineType::InternalError = internal_error, LineType::InternalWarning = internal_warning, LineType::InternalStatus = internal_status, LineType::InternalInfo = internal_info, LineType::Verbose = verbose, LineType::VerboseMore = verbose_more, LineType::VerboseUltra = verbose_ultra, LineType::Cout, LineType::Input, LineType::Command, LineType::Result, LineType::Hint }
	Defines the type of a line of text in the Shell - some types depend on the output level, others are of internal use. More...

Public Member Functions
	Shell (const std::string &consoleName="", bool bScrollable=true)
	Constructor: Initializes the values. More...

	~Shell ()
	Destructor. More...

void	addLine (const std::string &line, LineType type=LineType::DebugOutput)
	Adds a line to the internal output buffer. More...

void	addOutput (const std::string &text, LineType type=LineType::DebugOutput)
	Adds multiple lines to the internal output buffer. More...

void	clearOutput ()
	Clears the list of output-lines. More...

void	commandHistoryLengthChanged ()
	Config-value callback: Called when the length of the command history has changed in the config-file. More...

void	commandHistoryOffsetChanged ()
	Config-value callback: Called when the history offset has changed in the config-file. More...

unsigned int	getCursorPosition () const
	Returns the current position of the cursor in the input buffer. More...

LineList::const_iterator	getEndIterator () const
	Returns the end() iterator of the list of output-lines. More...

const std::string &	getInput () const
	Returns the current content of the input buffer (the text which was entered by the user) More...

InputBuffer *	getInputBuffer ()
	Returns the input buffer which is needed by the user to enter text into the shell. More...

LineList::const_iterator	getNewestLineIterator () const
	Returns an iterator to the newest line of output (except if the user is currently scrolling through the output). More...

unsigned int	getNumLines () const
	Returns the number of output-lines that are displayed in the shell. More...

unsigned int	getScrollPosition () const
	Returns the line which is currently viewed if the user scrolls through the older output-lines in the shell. More...

void	registerListener (ShellListener *listener)
	Registers a shell listener which listens for changes in this shell. More...

void	setConfigValues ()
	Defines the config values. More...

void	setCursorPosition (unsigned int cursor)
	Changes the position of the cursor in the input buffer. More...

void	unregisterListener (ShellListener *listener)
	Unregisters a shell listener. More...

Public Member Functions inherited from orxonox::BaseWriter
	BaseWriter (const std::string &name, bool bRegister=true)
	Constructor: Initializes the config-values. More...

virtual	~BaseWriter ()
	Destructor. More...

void	changedConfigurableAdditionalContexts ()
	Called if the config-vector of accepted contexts has changed, updates the masks in SubcontextOutputListener. More...

void	changedConfigurableAdditionalContextsLevel ()
	Called if the config value has changed, updates the corresponding mask in OutputListener. More...

void	changedConfigurableLevel ()
	Called if the config value has changed, updates the corresponding mask in OutputListener. More...

std::string	getConfigurableAdditionalContextsMaxLevelName () const
	Returns the name of the config value which defines the maximum output level of additional context. More...

std::string	getConfigurableAdditionalContextsName () const
	Returns the name of the config vector which defines the additional contexts (and sub-contexts) More...

std::string	getConfigurableMaxLevelName () const
	Returns the name of the config value which defines the maximum output level (independent of contexts). More...

const std::string &	getName () const
	Returns the name of this instance. More...

void	setAdditionalContextsLevelMax (OutputLevel max)
	Overwritten implementation of the function inherited from OutputListener, sets also the corresponding config-value. More...

void	setLevelMax (OutputLevel max)
	Overwritten implementation of the function inherited from OutputListener, sets also the corresponding config-value. More...

Public Member Functions inherited from orxonox::SubcontextOutputListener
	SubcontextOutputListener (bool bRegister=true)
	Constructor, initializes the context masks. More...

virtual	~SubcontextOutputListener ()
	Destructor. More...

virtual bool	acceptsOutput (OutputLevel level, const OutputContextContainer &context) const override
	Returns true if this listener accepts output of the given level and context, based on the levels and contexts masks, as well as the set of accepted sub-contexts. More...

const std::set< OutputContextSubID > &	getSubcontexts () const

virtual void	setAdditionalContextsMask (OutputContextMask mask) override
	Overwritten implementation of the function defined by OutputListener. More...

void	setAdditionalSubcontexts (const std::set< const OutputContextContainer * > &subcontexts)
	Defines the set of accepted sub-contexts. More...

Public Member Functions inherited from orxonox::OutputListener
	OutputListener (bool bRegister=true)
	Constructor, initializes the values and registers the instance at OutputManager if requested. More...

virtual	~OutputListener ()
	Destructor, unregisters the instance from OutputManager. More...

OutputLevel	getAdditionalContextsLevelMask () const
	Returns the additional contexts level mask. More...

OutputContextMask	getAdditionalContextsMask () const
	Returns the additional contexts mask. More...

OutputLevel	getLevelMask () const
	Returns the level mask. More...

void	registerListener (AdditionalContextListener *listener)
	Adds a listener to the list. More...

void	setAdditionalContextsLevelMask (OutputLevel mask)
	Defines the level mask of additional contexts. More...

void	setAdditionalContextsLevelMax (OutputLevel max)
	Defines the level mask of additional contexts in a way which accepts all output up to the level `max`. More...

void	setAdditionalContextsLevelRange (OutputLevel min, OutputLevel max)
	Defines the level mask of additional contexts in a way which accepts all output between the levels `min` and `max`. More...

void	setLevelMask (OutputLevel mask)
	Defines the level mask. More...

void	setLevelMax (OutputLevel max)
	Defines the level mask in a way which accepts all output up to the level `max`. More...

void	setLevelRange (OutputLevel min, OutputLevel max)
	Defines the level mask in a way which accepts all output between the levels `min` and `max`. More...

virtual void	unfilteredOutput (OutputLevel level, const OutputContextContainer &context, const std::vector< std::string > &lines)
	Called by OutputManager for each line of output, checks if this listener actually accepts this output before it calls the output() function. More...

void	unregisterListener (AdditionalContextListener *listener)
	Removes a listener from the list. More...

Public Member Functions inherited from orxonox::DevModeListener
	DevModeListener ()

virtual	~DevModeListener ()=default

Public Member Functions inherited from orxonox::Listable
	Listable ()
	Constructor: Allocates space in the element list. More...

	Listable (Context *context)
	Constructor: Allocates space in the element list and assigns the context. More...

virtual	~Listable ()
	Destructor: Removes the object from the object-lists. More...

Context *	getContext () const

void	setContext (Context *context)
	Changes the context. More...

void	unregisterObject ()
	Removes this object from the object-lists. More...

Public Member Functions inherited from orxonox::Identifiable
	Identifiable ()
	Constructor: Sets the default values. More...

virtual	~Identifiable ()

ORX_FORCEINLINE void *	getDerivedPointer (unsigned int classID)
	Returns a valid pointer of any derived type that is registered in the class hierarchy. More...

template<class T >
ORX_FORCEINLINE T *	getDerivedPointer (unsigned int classID)
	Version of getDerivedPointer with template. More...

template<class T >
ORX_FORCEINLINE const T *	getDerivedPointer (unsigned int classID) const
	Const version of getDerivedPointer with template. More...

Identifier *	getIdentifier () const
	Returns the Identifier of the object. More...

bool	isA (const Identifier *identifier)
	Returns true if the object's class is of the given type or a derivative. More...

template<class B >
bool	isA (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is of the given type or a derivative. More...

bool	isA (const Identifiable *object)
	Returns true if the object's class is of the given type or a derivative. More...

bool	isChildOf (const Identifier *identifier)
	Returns true if the object's class is a child of the given type. More...

template<class B >
bool	isChildOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a child of the given type. More...

bool	isChildOf (const Identifiable *object)
	Returns true if the object's class is a child of the given type. More...

bool	isDirectChildOf (const Identifier *identifier)
	Returns true if the object's class is a direct child of the given type. More...

template<class B >
bool	isDirectChildOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a direct child of the given type. More...

bool	isDirectChildOf (const Identifiable *object)
	Returns true if the object's class is a direct child of the given type. More...

bool	isDirectParentOf (const Identifier *identifier)
	Returns true if the object's class is a direct parent of the given type. More...

template<class B >
bool	isDirectParentOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a direct parent of the given type. More...

bool	isDirectParentOf (const Identifiable *object)
	Returns true if the object's class is a direct child of the given type. More...

bool	isExactlyA (const Identifier *identifier)
	Returns true if the object's class is exactly of the given type. More...

template<class B >
bool	isExactlyA (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is exactly of the given type. More...

bool	isExactlyA (const Identifiable *object)
	Returns true if the object's class is exactly of the given type. More...

bool	isParentOf (const Identifier *identifier)
	Returns true if the object's class is a parent of the given type. More...

template<class B >
bool	isParentOf (const SubclassIdentifier< B > *identifier)
	Returns true if the object's class is a parent of the given type. More...

bool	isParentOf (const Identifiable *object)
	Returns true if the object's class is a parent of the given type. More...

Static Public Member Functions
static unsigned int	getCacheSize ()
	Returns the cache size that is actually used in CommandExecutor, but placed here for better readability of the config file. More...

Static Public Member Functions inherited from orxonox::BaseWriter
static std::string	getConfigurableSectionName ()
	Returns the (static) name of the section wherein the config-values are defined. More...

Private Member Functions
	Shell (const Shell &)=delete

void	addToHistory (const std::string &command)
	Adds a command to the history of entered commands and writes it to the config-file. More...

void	backspace ()
	InputBuffer callback: Called if a key was pressed that deletes the character before the cursor (usually [backspace]). More...

void	clearInput ()
	Clears the text in the input buffer. More...

void	configureInputBuffer ()
	Registers this object as listener for different key-events at the input buffer. More...

void	cursorEnd ()
	InputBuffer callback: Called if a key was pressed that moves the input cursor the end of the input line (usually [end]). More...

void	cursorHome ()
	InputBuffer callback: Called if a key was pressed that moves the input cursor the beginning of the input line (usually [home]). More...

void	cursorLeft ()
	InputBuffer callback: Called if a key was pressed that moves the input cursor the left (usually [arrow left]). More...

void	cursorRight ()
	InputBuffer callback: Called if a key was pressed that moves the input cursor the right (usually [arrow right]). More...

void	deleteChar ()
	InputBuffer callback: Called if a key was pressed that deletes the character after the cursor (usually [delete]). More...

virtual void	devModeChanged (bool value) override
	Called upon changes in the development mode (by Core) Behaviour details see Core::devModeChanged. More...

void	execute ()
	InputBuffer callback: Called if a key was pressed that executes a command (usually [return]). More...

void	exit ()
	InputBuffer callback: Called if a key was pressed that clears the text in the input buffer or closes the shell (usually [esc]). More...

const std::string &	getFromHistory () const
	Returns a command from the history of entered commands (usually the most recent history entry, but the user can scroll through the history). More...

void	hintAndComplete ()
	InputBuffer callback: Called if a key was pressed that shows hints and completes a command (usually [tab]). More...

void	historyDown ()
	InputBuffer callback: Called if a key was pressed that scrolls downwards through the history of entered commands (usually [arrow down]). More...

void	historySearchDown ()
	InputBuffer callback: Called if a key was pressed that searches downwards through the history for a command stat starts like the one the user is currently typing (usually [page down]). Only if the shell is not scrollable. More...

void	historySearchUp ()
	InputBuffer callback: Called if a key was pressed that searches upwards through the history for a command stat starts like the one the user is currently typing (usually [page up]). Only if the shell is not scrollable. More...

void	historyUp ()
	InputBuffer callback: Called if a key was pressed that scrolls upwards through the history of entered commands (usually [arrow up]). More...

void	inputChanged ()
	InputBuffer callback: Called if the input changes. More...

Shell &	operator= (const Shell &)=delete

virtual void	printLine (const std::string &line, OutputLevel level) override
	Inherited from BaseWriter (LogListener), called if a new line of output was sent. More...

void	scrollDown ()
	InputBuffer callback: Called if a key was pressed that scrolls downwards through the output history (usually [page down]). Only if the shell is scrollable. More...

void	scrollUp ()
	InputBuffer callback: Called if a key was pressed that scrolls upwards through the output history (usually [page up]). Only if the shell is scrollable. More...

template<void(ShellListener::*)() F>
void	updateListeners ()
	Iterates through all registered shell listeners and calls the function F. More...

Private Attributes
const bool	bScrollable_
	If true, the user can scroll through the output-lines. More...

std::vector< std::string >	commandHistory_
	The history of commands that were entered by the user. More...

unsigned int	historyOffset_
	The command history is a circular buffer, this variable defines the current write-offset. More...

unsigned int	historyPosition_
	If the user scrolls through the history of entered commands (stored in commandHistory_), this contains the currently viewed history entry. More...

InputBuffer *	inputBuffer_
	The input buffer that is needed by the user to enter text. More...

std::list< ShellListener * >	listeners_
	The registered shell listeners. More...

unsigned int	maxHistoryLength_
	The maximum number of saved commands. More...

LineList	outputLines_
	A list of all output-lines that were displayed in the shell so far. More...

LineList::const_iterator	scrollIterator_
	An iterator to an entry of the list of output-lines, changes if the user scrolls through the output in the shell. More...

unsigned int	scrollPosition_
	The number of the line that is currently being referenced by scrollIterator_. More...

Static Private Attributes
static unsigned int	cacheSize_s
	The maximum cache size of the CommandExecutor - this is stored here for better readability of the config file and because CommandExecutor is not configurable. More...

Additional Inherited Members
Public Attributes inherited from orxonox::BaseWriter
std::vector< std::string >	configurableAdditionalContexts_
	Config vector, used to define the additional contexts (and sub-contexts) More...

int	configurableAdditionalContextsMaxLevel_
	Config value, used to define the maximum output level of additional context. More...

int	configurableMaxLevel_
	Config value, used to define the maximum output level (independent of contexts) More...

Protected Member Functions inherited from orxonox::BaseWriter
virtual void	output (OutputLevel level, const OutputContextContainer &context, const std::vector< std::string > &lines) override
	This function is inherited from OutputListener, each message is split into lines and sent to printLine(). More...

Protected Member Functions inherited from orxonox::OutputListener
const std::vector< AdditionalContextListener * > &	getListeners () const

Detailed Description

The Shell is the logical component of the console that displays output to the user and allows him to enter commands.

The Shell gathers output sent from OutputManager by inheriting from BaseWriter. The output-lines are stored in the shell, so they can be displayed in a graphical console. Additionally the Shell has an InputBuffer which is needed by the user to enter commands.

Different graphical consoles build upon a Shell, for example InGameConsole and IOConsole.

Member Typedef Documentation

typedef std::list<std::pair<std::string, LineType> > orxonox::Shell::LineList

Member Enumeration Documentation

enum orxonox::Shell::LineType

strong

Defines the type of a line of text in the Shell - some types depend on the output level, others are of internal use.

Enumerator
DebugOutput
Message
UserError
UserWarning
UserStatus
UserInfo
InternalError
InternalWarning
InternalStatus
InternalInfo
Verbose
VerboseMore
VerboseUltra
Cout
Input
Command
Result
Hint

Constructor & Destructor Documentation

orxonox::Shell::Shell	(	const std::string &	consoleName = `""`,
		bool	bScrollable = `true`
	)

Constructor: Initializes the values.

Parameters

consoleName	The name of the shell - used to define the name of the soft-debug-level config-value
bScrollable	If true, the user is allowed to scroll through the output-lines

orxonox::Shell::~Shell ( )

Destructor.

orxonox::Shell::Shell ( const Shell & )

privatedelete

Member Function Documentation

void orxonox::Shell::addLine	(	const std::string &	line,
		LineType	type = `LineType::DebugOutput`
	)

Adds a line to the internal output buffer.

void orxonox::Shell::addOutput	(	const std::string &	text,
		LineType	type = `LineType::DebugOutput`
	)

Adds multiple lines to the internal output buffer.

void orxonox::Shell::addToHistory ( const std::string & command )

private

Adds a command to the history of entered commands and writes it to the config-file.

void orxonox::Shell::backspace ( )

private

InputBuffer callback: Called if a key was pressed that deletes the character before the cursor (usually [backspace]).

void orxonox::Shell::clearInput ( )

private

Clears the text in the input buffer.

void orxonox::Shell::clearOutput ( )

Clears the list of output-lines.

void orxonox::Shell::commandHistoryLengthChanged ( )

Config-value callback: Called when the length of the command history has changed in the config-file.

void orxonox::Shell::commandHistoryOffsetChanged ( )

Config-value callback: Called when the history offset has changed in the config-file.

void orxonox::Shell::configureInputBuffer ( )

private

Registers this object as listener for different key-events at the input buffer.

void orxonox::Shell::cursorEnd ( )

private

InputBuffer callback: Called if a key was pressed that moves the input cursor the end of the input line (usually [end]).

void orxonox::Shell::cursorHome ( )

private

InputBuffer callback: Called if a key was pressed that moves the input cursor the beginning of the input line (usually [home]).

void orxonox::Shell::cursorLeft ( )

private

InputBuffer callback: Called if a key was pressed that moves the input cursor the left (usually [arrow left]).

void orxonox::Shell::cursorRight ( )

private

InputBuffer callback: Called if a key was pressed that moves the input cursor the right (usually [arrow right]).

void orxonox::Shell::deleteChar ( )

private

InputBuffer callback: Called if a key was pressed that deletes the character after the cursor (usually [delete]).

void orxonox::Shell::devModeChanged ( bool value )

overrideprivatevirtual

Called upon changes in the development mode (by Core) Behaviour details see Core::devModeChanged.

Implements orxonox::DevModeListener.

void orxonox::Shell::execute ( )

private

InputBuffer callback: Called if a key was pressed that executes a command (usually [return]).

void orxonox::Shell::exit ( )

private

InputBuffer callback: Called if a key was pressed that clears the text in the input buffer or closes the shell (usually [esc]).

static unsigned int orxonox::Shell::getCacheSize ( )

inlinestatic

Returns the cache size that is actually used in CommandExecutor, but placed here for better readability of the config file.

unsigned int orxonox::Shell::getCursorPosition ( ) const

Returns the current position of the cursor in the input buffer.

Shell::LineList::const_iterator orxonox::Shell::getEndIterator ( ) const

Returns the end() iterator of the list of output-lines.

const std::string & orxonox::Shell::getFromHistory ( ) const

private

Returns a command from the history of entered commands (usually the most recent history entry, but the user can scroll through the history).

const std::string & orxonox::Shell::getInput ( ) const

Returns the current content of the input buffer (the text which was entered by the user)

InputBuffer* orxonox::Shell::getInputBuffer ( )

inline

Returns the input buffer which is needed by the user to enter text into the shell.

Shell::LineList::const_iterator orxonox::Shell::getNewestLineIterator ( ) const

Returns an iterator to the newest line of output (except if the user is currently scrolling through the output).

unsigned int orxonox::Shell::getNumLines ( ) const

inline

Returns the number of output-lines that are displayed in the shell.

unsigned int orxonox::Shell::getScrollPosition ( ) const

inline

Returns the line which is currently viewed if the user scrolls through the older output-lines in the shell.

void orxonox::Shell::hintAndComplete ( )

private

InputBuffer callback: Called if a key was pressed that shows hints and completes a command (usually [tab]).

void orxonox::Shell::historyDown ( )

private

InputBuffer callback: Called if a key was pressed that scrolls downwards through the history of entered commands (usually [arrow down]).

void orxonox::Shell::historySearchDown ( )

private

InputBuffer callback: Called if a key was pressed that searches downwards through the history for a command stat starts like the one the user is currently typing (usually [page down]). Only if the shell is not scrollable.

void orxonox::Shell::historySearchUp ( )

private

InputBuffer callback: Called if a key was pressed that searches upwards through the history for a command stat starts like the one the user is currently typing (usually [page up]). Only if the shell is not scrollable.

void orxonox::Shell::historyUp ( )

private

InputBuffer callback: Called if a key was pressed that scrolls upwards through the history of entered commands (usually [arrow up]).

void orxonox::Shell::inputChanged ( )

private

InputBuffer callback: Called if the input changes.

Shell& orxonox::Shell::operator= ( const Shell & )

privatedelete

void orxonox::Shell::printLine	(	const std::string &	line,
		OutputLevel	level
	)

overrideprivatevirtual

Inherited from BaseWriter (LogListener), called if a new line of output was sent.

Implements orxonox::BaseWriter.

void orxonox::Shell::registerListener ( ShellListener * listener )

Registers a shell listener which listens for changes in this shell.

void orxonox::Shell::scrollDown ( )

private

InputBuffer callback: Called if a key was pressed that scrolls downwards through the output history (usually [page down]). Only if the shell is scrollable.

void orxonox::Shell::scrollUp ( )

private

InputBuffer callback: Called if a key was pressed that scrolls upwards through the output history (usually [page up]). Only if the shell is scrollable.

void orxonox::Shell::setConfigValues ( )

Defines the config values.

void orxonox::Shell::setCursorPosition ( unsigned int cursor )

Changes the position of the cursor in the input buffer.

void orxonox::Shell::unregisterListener ( ShellListener * listener )

Unregisters a shell listener.

template<void(ShellListener::*)() F>

void orxonox::Shell::updateListeners ( )

inlineprivate

Iterates through all registered shell listeners and calls the function F.

Member Data Documentation

const bool orxonox::Shell::bScrollable_

private

If true, the user can scroll through the output-lines.

unsigned int orxonox::Shell::cacheSize_s

staticprivate

The maximum cache size of the CommandExecutor - this is stored here for better readability of the config file and because CommandExecutor is not configurable.

std::vector<std::string> orxonox::Shell::commandHistory_

private

The history of commands that were entered by the user.

unsigned int orxonox::Shell::historyOffset_

private

The command history is a circular buffer, this variable defines the current write-offset.

unsigned int orxonox::Shell::historyPosition_

private

If the user scrolls through the history of entered commands (stored in commandHistory_), this contains the currently viewed history entry.

InputBuffer* orxonox::Shell::inputBuffer_

private

The input buffer that is needed by the user to enter text.

std::list<ShellListener*> orxonox::Shell::listeners_

private

The registered shell listeners.

unsigned int orxonox::Shell::maxHistoryLength_

private

The maximum number of saved commands.

LineList orxonox::Shell::outputLines_

private

A list of all output-lines that were displayed in the shell so far.

LineList::const_iterator orxonox::Shell::scrollIterator_

private

An iterator to an entry of the list of output-lines, changes if the user scrolls through the output in the shell.

unsigned int orxonox::Shell::scrollPosition_

private

The number of the line that is currently being referenced by scrollIterator_.

The documentation for this class was generated from the following files:

libraries/core/command/Shell.h
libraries/core/command/Shell.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
