#include </home/jenkins/workspace/orxonox_doxygen_trunk/src/libraries/network/Connection.h>

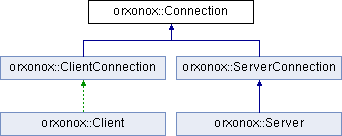

Inheritance diagram for orxonox::Connection:

Public Member Functions
virtual	~Connection ()
	Destructor. More...

Protected Member Functions
	Connection (uint32_t firstPeerID=NETWORK_PEER_ID_SERVER+1)
	Constructor. More...

void	addPacket (ENetPacket *packet, uint32_t peerID, uint8_t channelID)
	Send a packet. More...

virtual void	addPeer (uint32_t peerID)=0

void	broadcastPacket (ENetPacket *packet, uint8_t channelID)
	Send a broadcast packet. More...

void	disconnectPeer (uint32_t peerID)
	Send an outgoing event of type 'disconnectPeer'. More...

void	disconnectPeers ()
	Send an outgoing event of type 'disconnectPeers'. More...

void	disconnectPeersInternal ()

void	enableCompression ()

incomingEvent	preprocessConnectEvent (ENetEvent &event)

incomingEvent	preprocessDisconnectEvent (ENetEvent &event)

incomingEvent	preprocessReceiveEvent (ENetEvent &event)

void	processIncomingEvent (ENetEvent &event)
	Handle an incoming event. More...

void	processOutgoingEvent (outgoingEvent &event)
	Send an event. More...

virtual void	processPacket (packet::Packet *packet)=0

void	processQueue ()

virtual void	removePeer (uint32_t peerID)=0

void	startCommunicationThread ()
	Start the main communication thread. More...

void	stopCommunicationThread ()
	Stop the main communication thread. More...

void	waitOutgoingQueue ()

Protected Attributes
ENetHost *	host_

Private Member Functions
void	communicationThread ()
	Main communication thread. More...

Private Attributes
bool	bCommunicationThreadRunning_

ENetAddress *	bindAddress_

boost::thread *	communicationThread_

std::deque< incomingEvent >	incomingEvents_

boost::mutex *	incomingEventsMutex_

uint32_t	nextPeerID_

std::deque< outgoingEvent >	outgoingEvents_

boost::mutex *	outgoingEventsMutex_

boost::mutex *	overallMutex_

std::map< ENetPeer *, uint32_t >	peerIDMap_

std::map< uint32_t, ENetPeer * >	peerMap_

Constructor & Destructor Documentation

orxonox::Connection::~Connection ( )

virtual

Destructor.

orxonox::Connection::Connection ( uint32_t firstPeerID = NETWORK_PEER_ID_SERVER + 1 )

protected

Constructor.

Parameters

firstPeerId The initial value of nextPeerID_

Member Function Documentation

void orxonox::Connection::addPacket	(	ENetPacket *	packet,
		uint32_t	peerID,
		uint8_t	channelID
	)

protected

Send a packet.

Parameters

packet	Pointer to the packet to send
peerID	The peer to which the event is sent
channelId	The channel ID

virtual void orxonox::Connection::addPeer ( uint32_t peerID )

protectedpure virtual

Implemented in orxonox::Server, and orxonox::ClientConnection.

void orxonox::Connection::broadcastPacket	(	ENetPacket *	packet,
		uint8_t	channelID
	)

protected

Send a broadcast packet.

Parameters

packet	Pointer to the packet to send
channelId	The channel ID

void orxonox::Connection::communicationThread ( )

private

Main communication thread.

void orxonox::Connection::disconnectPeer ( uint32_t peerID )

protected

Send an outgoing event of type 'disconnectPeer'.

Parameters

peerID The peer to which the event is sent

void orxonox::Connection::disconnectPeers ( )

protected

Send an outgoing event of type 'disconnectPeers'.

void orxonox::Connection::disconnectPeersInternal ( )

protected

void orxonox::Connection::enableCompression ( )

protected

incomingEvent orxonox::Connection::preprocessConnectEvent ( ENetEvent & event )

protected

incomingEvent orxonox::Connection::preprocessDisconnectEvent ( ENetEvent & event )

protected

incomingEvent orxonox::Connection::preprocessReceiveEvent ( ENetEvent & event )

protected

void orxonox::Connection::processIncomingEvent ( ENetEvent & event )

protected

Handle an incoming event.

Parameters

event The incoming event

void orxonox::Connection::processOutgoingEvent ( outgoingEvent & event )

protected

Send an event.

Parameters

event The event to send

virtual void orxonox::Connection::processPacket ( packet::Packet * packet )

protectedpure virtual

Implemented in orxonox::Client, and orxonox::Server.

void orxonox::Connection::processQueue ( )

protected

virtual void orxonox::Connection::removePeer ( uint32_t peerID )

protectedpure virtual

Implemented in orxonox::Server, and orxonox::ClientConnection.

void orxonox::Connection::startCommunicationThread ( )

protected

Start the main communication thread.

void orxonox::Connection::stopCommunicationThread ( )

protected

Stop the main communication thread.

void orxonox::Connection::waitOutgoingQueue ( )

protected

Member Data Documentation

bool orxonox::Connection::bCommunicationThreadRunning_

private

ENetAddress* orxonox::Connection::bindAddress_

private

boost::thread* orxonox::Connection::communicationThread_

private

ENetHost* orxonox::Connection::host_

protected

std::deque<incomingEvent> orxonox::Connection::incomingEvents_

private

boost::mutex* orxonox::Connection::incomingEventsMutex_

private

uint32_t orxonox::Connection::nextPeerID_

private

std::deque<outgoingEvent> orxonox::Connection::outgoingEvents_

private

boost::mutex* orxonox::Connection::outgoingEventsMutex_

private

boost::mutex* orxonox::Connection::overallMutex_

private

std::map<ENetPeer*, uint32_t> orxonox::Connection::peerIDMap_

private

std::map<uint32_t, ENetPeer*> orxonox::Connection::peerMap_

private

The documentation for this class was generated from the following files:

libraries/network/Connection.h
libraries/network/Connection.cc
